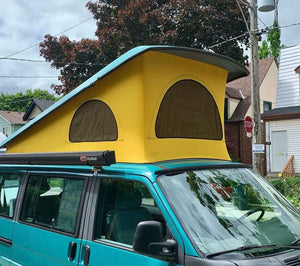

Installing a new pop-top canvas on a VW T4 (Eurovan) Weekender or Westfalia camper is a rewarding DIY project for van enthusiasts. Over time, the original canvas (also called the roof tent or pop-top tent) can become worn, leaky, or torn, prompting the need for a replacement.
This guide provides a step-by-step VW T4 pop-top canvas installation walkthrough, including how to remove the old canvas and fit a new one. We’ll also cover the tools you’ll need, practical tips to make the job easier, and potential challenges to watch out for during your Westfalia T4 roof tent replacement.
Whether you’re upgrading to a new 3-window canvas for better ventilation or replacing a mildewed original, these instructions will help you tackle the job with confidence.
Compatible Vans
- VW T4 Westfalia
- VW T4 California
- VW Eurovan Weekender
Tools and Preparation
Before you begin the camper van canvas fitting process, gather the necessary tools and prepare your workspace.
Tools Needed
- Screwdrivers: Phillips head screwdriver or Torx bit for removing the retaining frame screws.
- Pliers: Needle-nose or flat-nose pliers for removing the rubber spline (keder).
- Trim tool or flat screwdriver: For prying the rubber strip or seal if necessary.
- Wooden or plastic wedge: Used to press the new retaining strip into place.
- Step stool or ladder: To comfortably reach the roof.
- Marker and tape (optional): Helps mark orientation.
- Replacement rubber seal (optional): Useful if the old one breaks during removal.
Important: Clean the Roof and Work Area First
Before installing the new pop-top canvas, thoroughly clean the roof opening and the surrounding work area. Dirt, grease, or old seal residue can easily transfer onto the new fabric during installation and permanently stain the canvas.
Pay special attention to cleaning the following areas:
- The fiberglass pop-top roof
- The rear pop-top hinges
- The aluminum retaining rails
- The lower mounting channel
Many VW T4 owners position the new canvas by pulling it over the roof from the outside. This method allows installation without removing the rear hinges. However, if the roof or hinges are dirty, the canvas can become stained while sliding into place.
Tip: Work with clean hands and tools. Wearing clean gloves can help prevent grease marks on light-colored canvas.
Preparation Steps
- Park on level ground: Ensure the van is stable with the parking brake engaged.
- Pop the top: Fully open the roof for access.
- Clear the interior: Remove the upper mattress and front bed panel if possible.
- Have a helper: An extra set of hands makes alignment easier.
- Allow enough time: This job requires patience and careful work.
Pro Tip: Take photos of how the old canvas is attached before removing it. This helps during reinstallation.
Step 1: Removing the Old Pop-Top Canvas
Removing the old canvas involves detaching it from the roof opening (bottom edge) and the pop-top itself (top edge).
Detach the Lower Edge of the Canvas
Most Westfalia T4 roofs use a rubber or plastic spline (keder) tucked into a channel around the roof opening.
Start at the rear center of the opening and use pliers to pull the rubber spline out of the channel. Work slowly around the entire perimeter until the bottom edge of the canvas is completely free.
If there is a rubber seal covering the spline, gently pry it up using a trim tool or flat screwdriver. Avoid pulling aggressively as older seals can break.
Once the lower edge is detached, inspect the channel and remove any debris so it is ready for the new canvas.
Detach the Upper Edge
The upper edge of the canvas is secured by a retaining frame attached with many small screws around the pop-top perimeter.
Remove all screws from the frame and keep them safe. Once the frame is removed, the canvas can be lifted off the pop-top lip and removed completely.
If the canvas is stuck in the channel, carefully loosen it to avoid damaging the fiberglass.
Difficulty Note: Removing the old canvas can take time, especially if screws are rusty or the spline is stubborn. Patience is key.
Step 2: Installing the New Canvas – Top Edge First
It is usually easiest to attach the top edge first and then secure the bottom.
Position the New Canvas
Unpack the new canvas and identify the front and rear orientation. Drape the canvas over the pop-top so the top edge aligns with the roof perimeter.
Lower the pop-top to roughly half-open. This provides enough slack to install the canvas without excess tension.
Attach the Canvas to the Pop-Top
Insert the canvas bead into the groove and reinstall the retaining frame.
Start securing screws at the front center, then alternate sides while working toward the rear. This keeps the fabric evenly tensioned.
Once all screws are installed, tighten them fully.
Step 3: Securing the Bottom Edge
After the top is secured, attach the bottom edge using the rubber spline.
Align the Canvas
Ensure the canvas hangs evenly around the opening before installing the spline.
Reinstall the Keder Strip
Starting at the rear center, press the spline into the channel while holding the canvas edge in place.
Work gradually around the entire perimeter until the strip is fully seated.
Troubleshooting: If the final section is difficult to insert, adjust the roof height slightly to relieve tension.
Step 4: Final Checks
- Inspect attachments: Ensure all screws and retaining strips are secure.
- Close the roof slowly: Keep a window or door open to release air pressure.
- Reopen and check: Confirm the canvas stretches evenly.
- Weather test: Check for gaps or leaks.
FAQ – VW T4 Pop-Top Canvas Installation
How long does installation take?
Most DIY installations take 2-4 hours, depending on experience.
Can one person install a pop-top canvas?
Yes, but having a helper makes alignment much easier.
Do I need to remove the pop-top roof?
No. On most VW T4 campers, the canvas can be replaced without removing the roof.
Conclusion
Congratulations — you’ve completed your VW T4 pop-top canvas installation. A new canvas not only improves the look of your camper but also enhances comfort and weather protection during your travels.
With patience and careful installation, your VW T4 will be ready for many more adventures with a fresh pop-top tent.
