How to Replace Your VW T3 Pop-Top Canvas: Full Guide (With Tools & Tips)
Replacing your VW T3 Westfalia pop-top canvas might sound intimidating, but with the right tools and a solid afternoon, it’s a doable DIY job — and a massive upgrade in comfort and looks. This guide will walk you through the process, tools, tips, and common mistakes to avoid.
Why Replace Your Pop-Top Canvas?
If your original canvas is leaking, sagging, or full of tears and mildew, you’re not just losing insulation — you’re risking interior water damage and sleepless nights. A new canvas improves ventilation, weatherproofing, and resale value.
Tools You’ll Need:
- Electric screwdriver or drill with bits
- Flathead and Phillips screwdrivers
- Rivet gun (if your van uses rivets)
- High-strength staples and staple gun
- Utility knife or scissors
- Ladder or stable step stool
- Masking tape or clips to hold canvas in place
How Long Does It Take?
Expect 3 to 6 hours if you’re doing it solo. If you have help, it can be done in 2–3 hours — especially if your replacement canvas is well-fitted and labeled like ours.
Step-by-Step Overview:

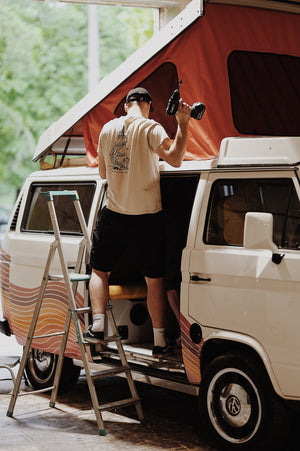

1. Remove the Old Canvas
Open your pop-top fully. Carefully detach the canvas from the upper and lower tracks. Save all screws and take photos of the original installation — it’ll help later.
2. Clean Mounting Surfaces
Remove dirt, rust, or old adhesive. Smooth, clean surfaces will make the new install much easier and ensure no leaks.
3. Align the New Canvas
Start with one side (usually the front or back), and loosely attach it using screws or staples. Don’t tighten anything fully yet — you’ll want to make small adjustments as you go.
4. Work Around the Perimeter
Once aligned, work around the sides, pulling the canvas evenly as you attach it. Clip or tape sections in place to hold tension. Install zippers, mesh, or Velcro as required.
5. Tighten and Seal
Once everything is aligned and tensioned, go back and secure all screws or rivets fully. Trim any excess material. Double-check zipper movement and screen alignment.
Tips from Our Team:
- Do it on a warm, dry day — canvas stretches better and seals tighter
- Use a second set of hands for alignment and holding tension
- Label or mark screw positions before removing old canvas
- Take breaks. Working overhead for hours is exhausting
Common Mistakes to Avoid:
- Overtightening screws before the full canvas is aligned
- Skipping cleanup of mounting areas
- Trying to reuse brittle old fasteners
- Cutting fabric too early — always install first, then trim
Need a Replacement You Can Rely On?
We build precision-fit VW T3 Westfalia replacement tents with durable canvas, sealed seams, and premium black mosquito mesh — designed to last for years of real-world travel.
